Factory Direct Sales High Quality, LED Display Screen Car Smart LED Car Screen for Window Hot Sale Custom LED Screen Led Display
- Overview
- Recommended Products

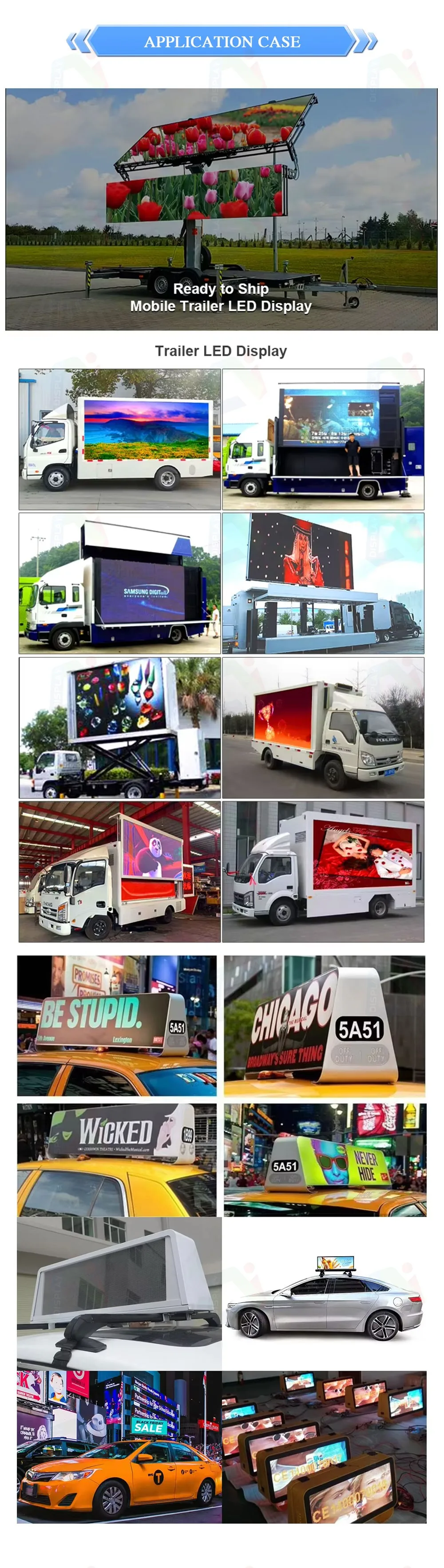

Application
Specification
Model |
P2.5 |
P3 |
P4 |
P5 |
|||
Pixel Pitch |
2.5mm |
3.076mm |
4mm |
5mm |
|||
Color |
1R1G1B/Full Color |
||||||
LEDs Type |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
|||
Scan |
1/16 |
1/13 |
1/10 |
1/8 |
|||
Module Size |
320*160*18mm |
||||||
Module Resolution |
128*64dots |
104*52dots |
80*40dots |
64*32dots |
|||
Pixel Density |
160,000dots/㎡ |
105,625dots/㎡ |
62,500dots/㎡ |
40,000dots/㎡ |
|||

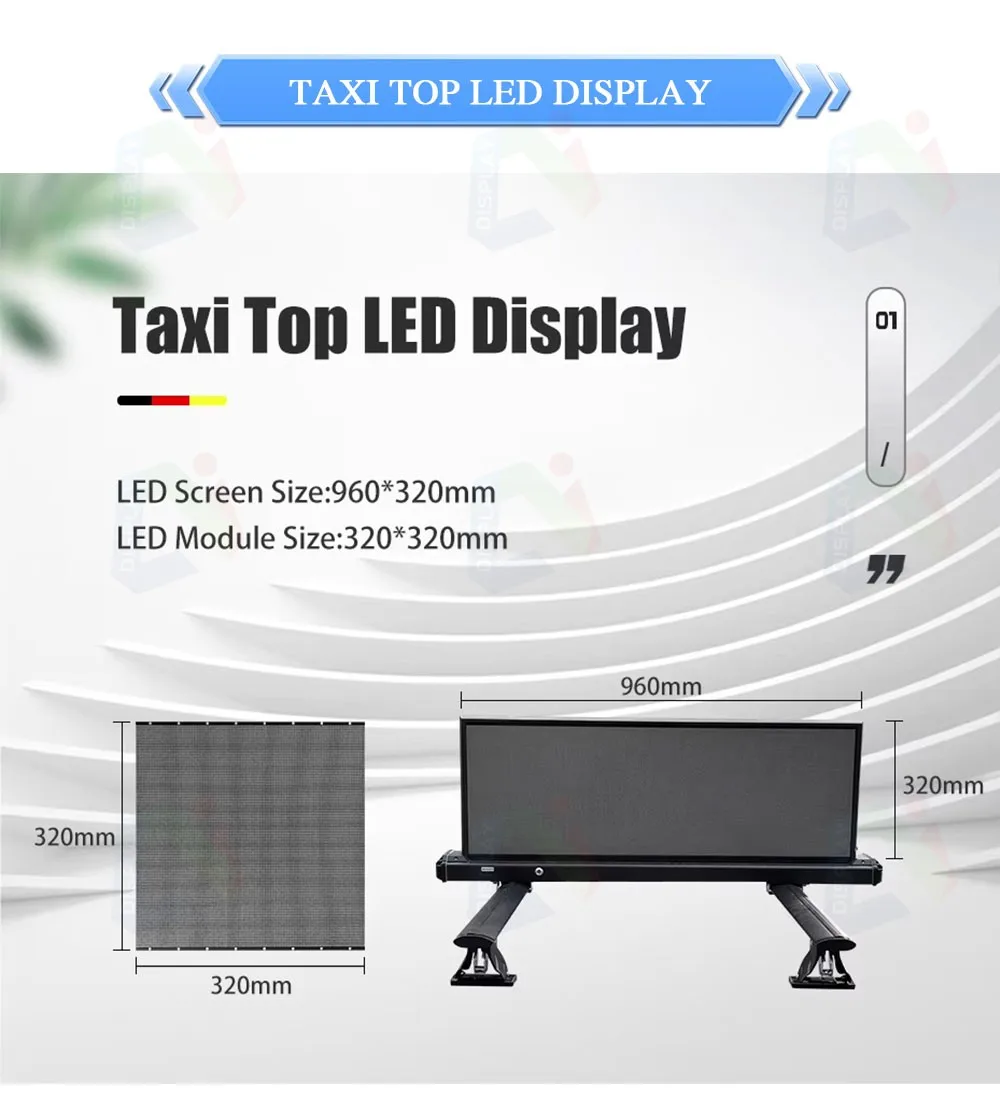

Panel Size |
960*320mm |
||||||
Cabinet Size |
1070*155(70)*410mm |
||||||

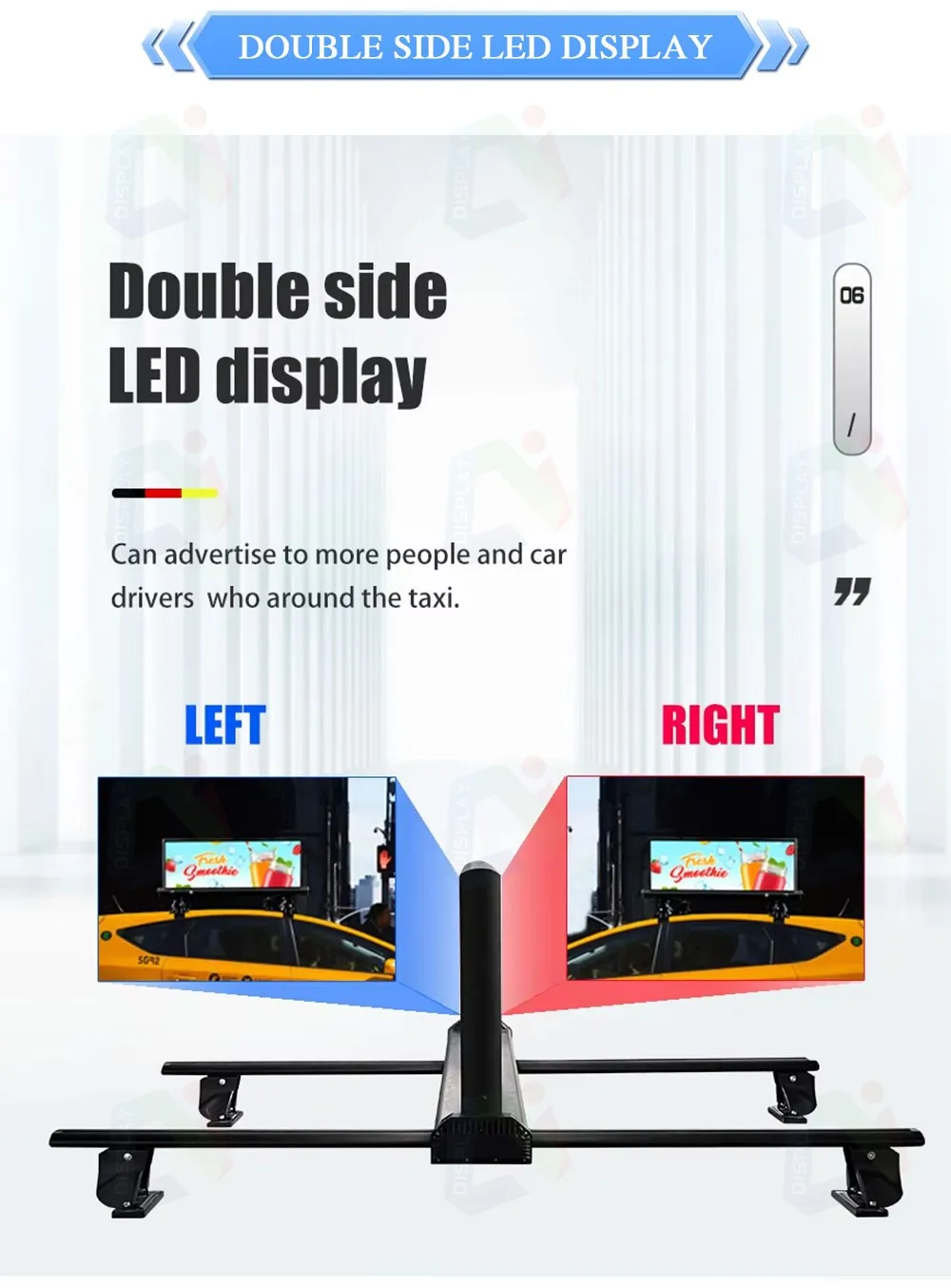

Cabinet Type |
Double Sided |
||||||
Cabinet Material |
Waterproof Iron |
||||||
Weight |
20Kg |
||||||
Grey Scale |
14Bit |
||||||
Refresh Rate |
≥3840Hz |
||||||

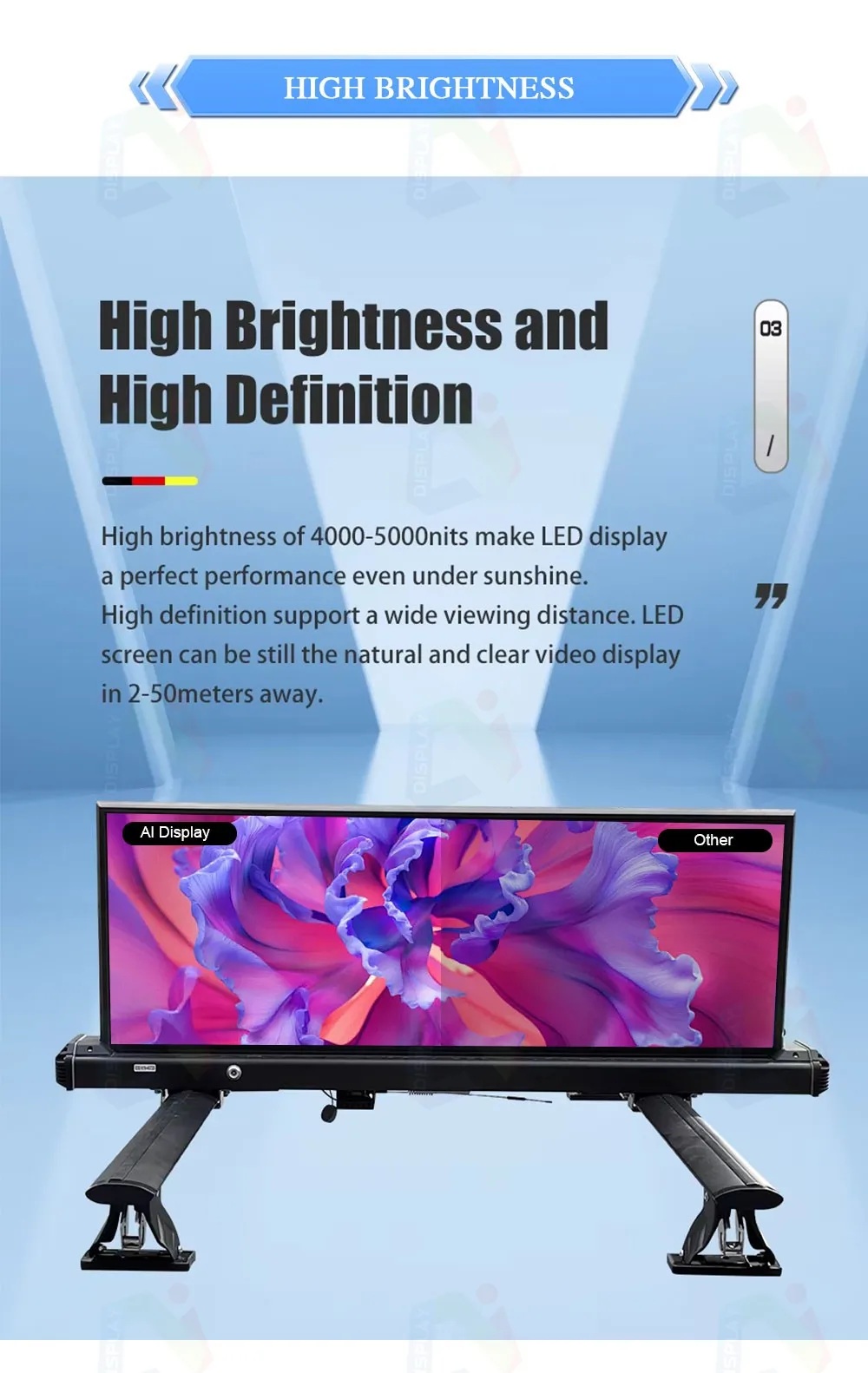

Brightness |
≥5500nit |
||||||
IP Level |
IP65 |
||||||
Viewing Angle |
(H)140°/(V)120° |
||||||
Life Span |
100,000Hours |
||||||
Max. Power |
≤700W/㎡ |
||||||
Avg. Power |
≤285W/㎡ |
||||||
Working Temp |
-20°- +60° |
||||||
Working Humidity |
10%-95%RH |
||||||
Package |
Wooden Box or Thickened Carton |
||||||
LED module details

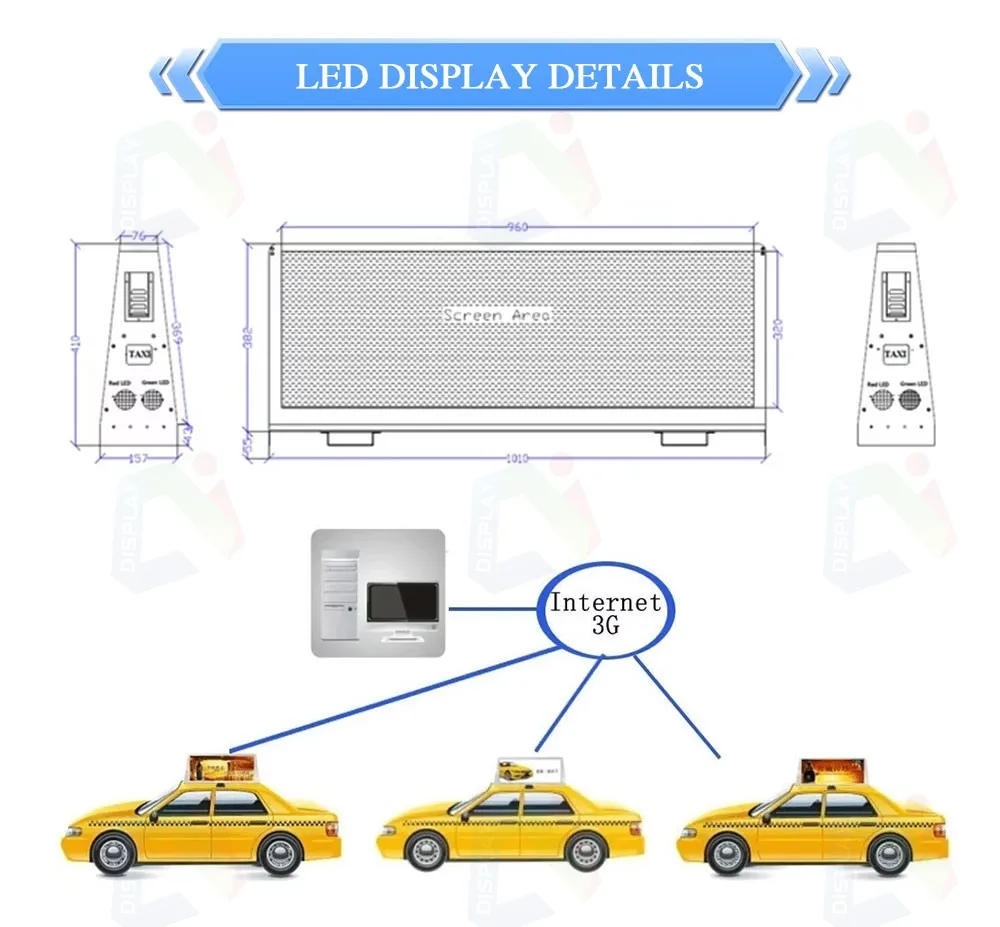

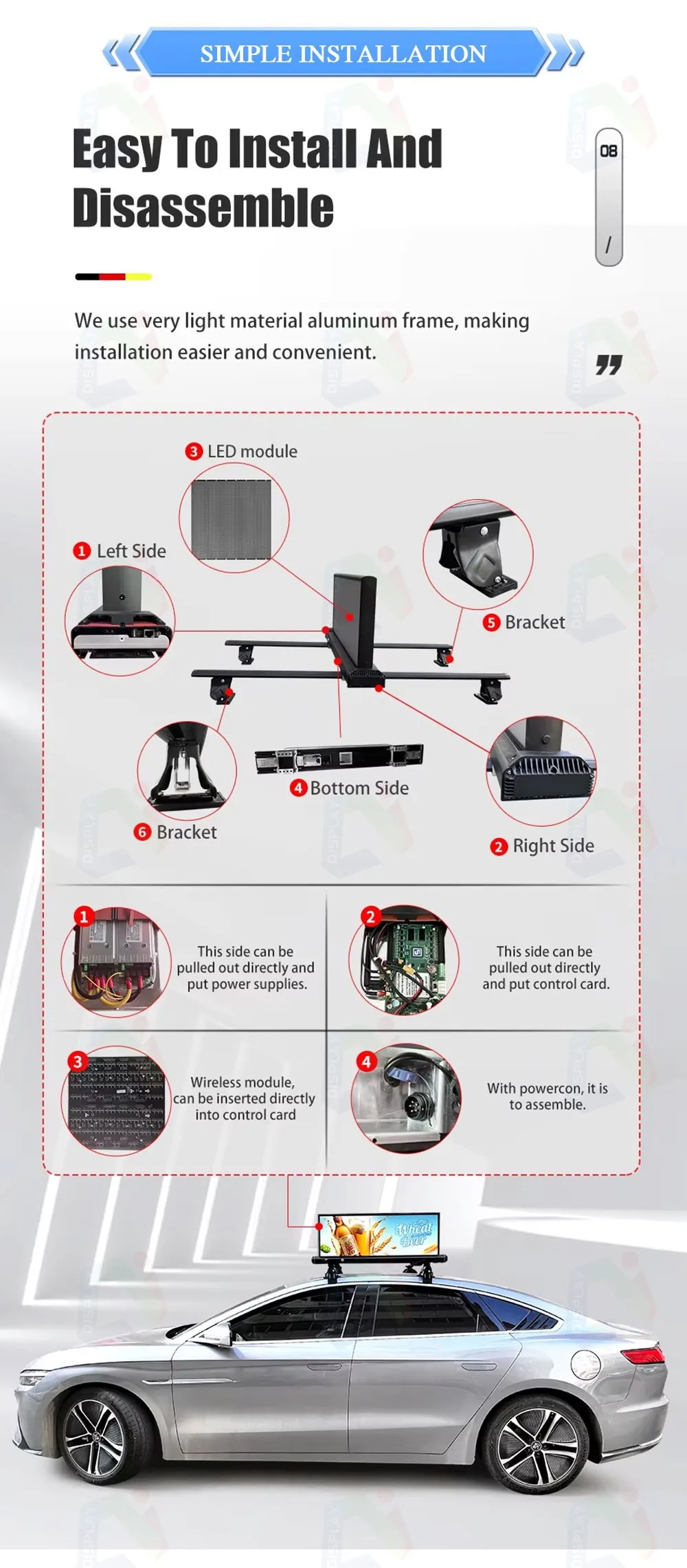

Cabinet details
Product Description

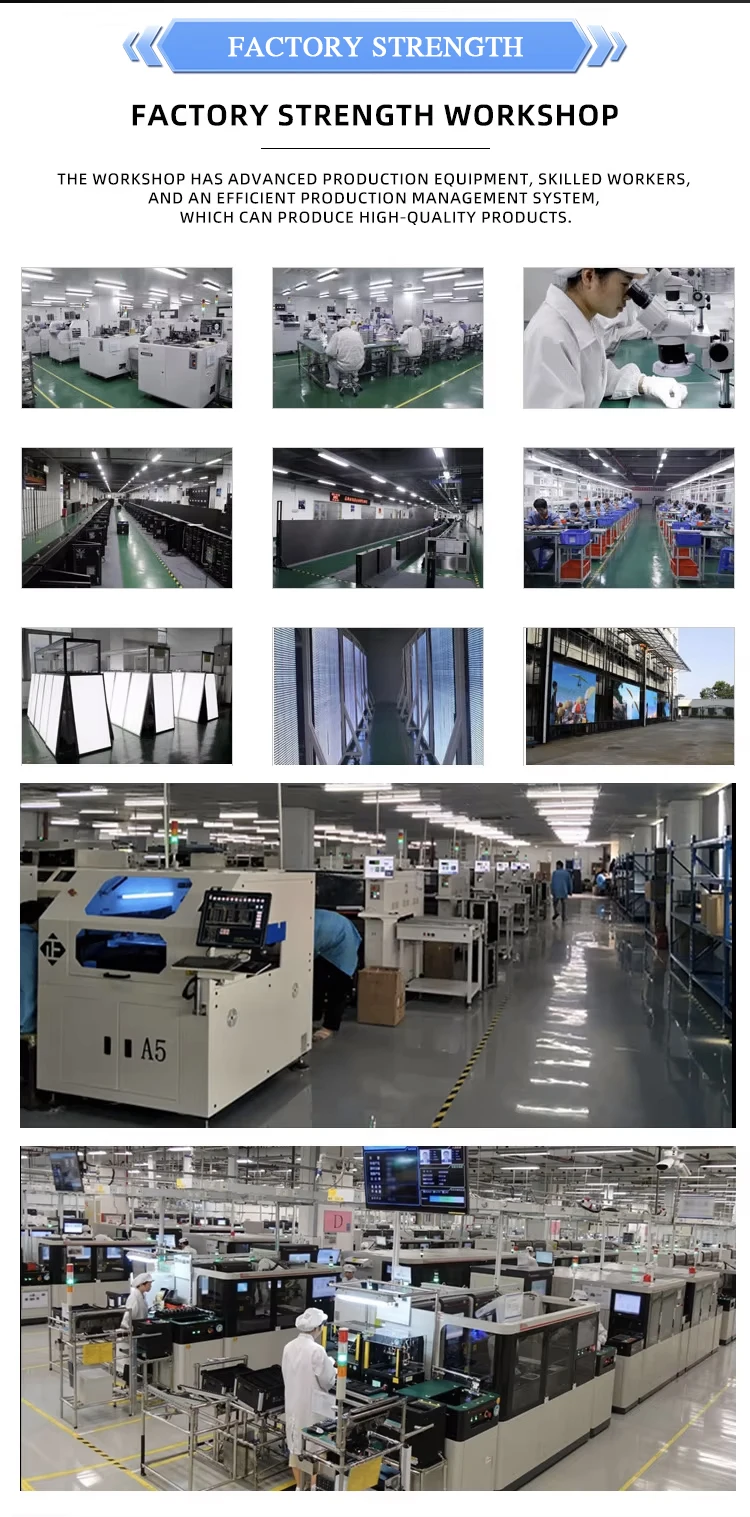

Company Profile
The company has advanced production and manufacturing equipment and an excellent quality management system, and has established a scientific standard production flow. All advanced production and testing equipment are used, achieving basic full automation, providing reliable guarantee for product quality, and greatly improving production efficiency. Strictly operating in accordance with the ISO9001:2008 quality management system, we have accumulated rich experience in advanced production management, established an effective quality management system, and improved quality supervision and testing methods. As of now, the product has obtained multiple international authoritative certifications, including BSCI, DEKRA, CE, ROHS, EMC, SGS, ERPLM80, FC, UL, DLCSAA, PSE, TUV, etc.
Company vision: To become a leader in the global LED application field
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Are you a manufacturer or trading company?
Q3: What is your MOQ?
A3: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4: How about your Warranty term?
Q5: When will you make the delivery?
A5: We can make the delivery within 3-5 working days for the led modules and 10-15 days for the led finished screen according to the size and quantities of your order.
A1: We are a Professional OEM/ODM manufacturer .
.
Q2: How does your factory do regarding quality control?
A2: The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q2: How does your factory do regarding quality control?
A2: The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q3: What is your MOQ?
A3: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4: How about your Warranty term?
A4: Calculated from the goods to the customer, the warranty period is 2 years, don't worry, there is a problem with the module. you can send it back to Shenzhen for repair.
Q5: When will you make the delivery?
A5: We can make the delivery within 3-5 working days for the led modules and 10-15 days for the led finished screen according to the size and quantities of your order.
